Why is the OEM-standard manufactured TCD2012 engine the "heart" of your generator set/construction machinery? (Detailed explanation of 6-12 month warranty included)

Introduction: How to Extend the Life of Your Equipment When Original Parts Are Discontinued?

For users of Deutz TCD2012 series engines, power interruption means hundreds of dollars in downtime losses per minute. Faced with high prices for original parts and increasingly longer delivery times, more and more equipment managers are seeking high-quality OEM-standard alternatives.

Today, we focus on a core power unit—the Deutz TCD2012L042V. As a compact, medium-displacement engine with a gross weight of 510kg, it is widely used in generator sets, air compressors, road machinery, and some agricultural equipment. This article will break down the essential qualities of a compliant replacement engine from three dimensions: design parameters, material manufacturing processes, and application matching.

I. Core Parameter Interpretation: The Engineering Logic Behind 510kg

1. Weight and Boundary Limitations

Gross Weight: 510kg

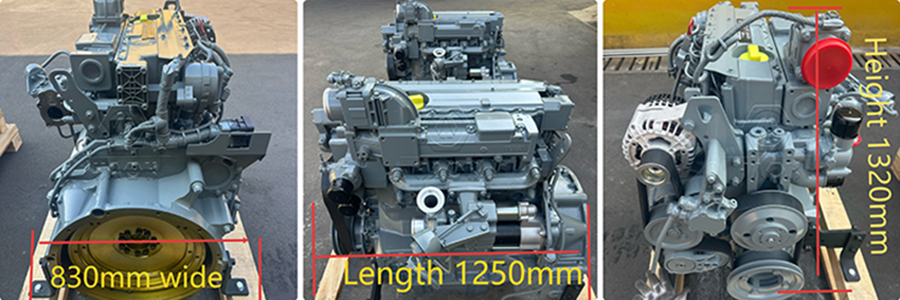

Dimensions: 1250mm × 830mm × 1320mm (Length × Width × Height)

This is a key constraint for modification or replacement projects. Compared to the original engine, our OEM version strictly adheres to the external interface dimensions of the DEUTZ TCD2012 series, ensuring easy installation in the confined engine bay without the need for modified engine mounts. The 510kg weight dictates that its cylinder block is made of high-strength gray cast iron, sufficient to withstand deformation under high pressure – something that cheap refurbished engines cannot match.

2. Model Analysis: TCD2012L042V

TCD: Represents Turbocharged with Charge Air Cooling, a core technology for meeting Tier 2/Stage II and some Tier 3 emission standards, ensuring no power reduction at high altitudes or high temperatures.

2012: Represents a 1.2L single-cylinder displacement. For 6-cylinder models, the total displacement is approximately 7.2L, classifying it as a mid-displacement, high-power-density engine.

L04: Specific fuel injection system and governor code, suitable for generator sets operating at constant speed or construction machinery operating at variable speed.

II. OEM Standard Manufacturing: Three "Outperforms" to Alleviate Your Procurement Risks

Many buyers worry that "non-original" equals "low quality." We eliminate this concern by strictly adhering to

OEM (Original Equipment Manufacturer) production standards:

1. Casting and Machining Precision

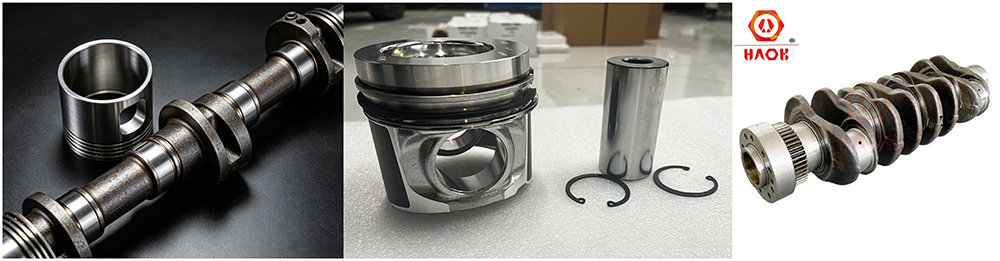

Cylinder Liners: Utilizing centrifugally cast boron alloy cylinder liners, wear resistance is 40% higher than ordinary cast iron.

Crankshaft: Through quenching and fillet rolling processes, fatigue strength meets original drawing requirements, ensuring

no risk of shaft breakage during major overhaul cycles (typically 12,000-15,000 hours).

2. Sealing and Fastening

The entire machine uses imported brand gaskets (such as Victor Reinz) and galvanized high-strength bolts. Eliminating the "three leaks" (oil leaks, water leaks, air leaks)—this is the most direct standard distinguishing professional OEM factories from small workshops.

3. Fuel System Calibration

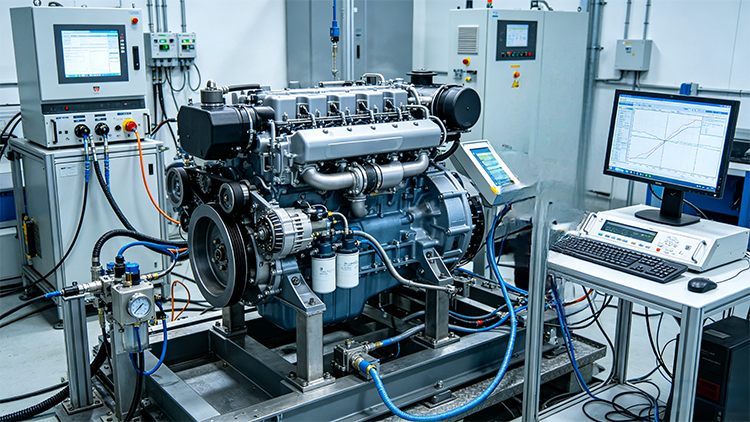

We perform bench calibration for the Deutz TCD2012 series mechanical pumps or electronically controlled unit pumps. A one-hour break-in test will be conducted before delivery to ensure that the fuel consumption curve and exhaust temperature meet the original factory technical specifications.

III. Application Scenarios: Who is the TCD2012L042V suitable for?

Scenario 1: 50-80kW Generator Set

Challenge: Severe engine speed drop and large voltage fluctuations during sudden load increases.

Our Solution: This model is matched with a high torque reserve governor (typically >10% torque reserve), and with its 510kg self-weight inertia, it can withstand the starting impact of inductive loads such as air conditioning and motors.

Scenario 2: Small Road Roller or Milling Machine

Challenge: The engine operates with a lateral tilt, and the oil filter may be sucked into the air.

Our Solution: This model comes standard with a fully floating oil filter and a large-capacity oil pan (optional depending on operating conditions), allowing the vehicle to operate normally within a 25° longitudinal and lateral tilt range.

Scenario 3: Marine Auxiliary Generator

Challenge: Corrosion in high salt spray environments.

Our Solution: Anti-salt spray coating treatment can be provided upon request, and the exhaust manifold is made of weather-resistant cast iron.

IV. Addressing Core Concerns: Warranty and After-Sales Service

We understand that the biggest pain point for buyers in the replacement market is "it breaks down after a few days and no one is there to take responsibility."

Flexible Warranty Period: We offer a comprehensive warranty of 6 months to 1 year (the specific warranty will be determined based on application conditions and maintenance records). This covers core components such as the cylinder block and crankshaft, but excludes consumable parts (filters, belts).

Technical Support: We provide detailed installation dimension diagrams and heat dissipation matching calculations. If your original radiator is aging, we can recommend matching a high-density radiator of the same size.

Spare Parts Supply: Due to OEM standard manufacturing, the piston rings, bearings, and filters of this machine are compatible with the widely used Deutz TCD2012 repair kit, avoiding your being tied to "exclusive parts" later.

V. Conclusion Purchasing a Deutz TCD2012L042V diesel engine should not be a gamble.

Choosing the OEM standard means you are getting a bench-tested, industrial-grade product; choosing the 510kg high-quality components means you are buying 12,000 hours of continuous operation capability; choosing a 6-12 month warranty means we take responsibility for every casting defect in the product.

If you are looking for a reliable power source for your generator set, construction machinery, or marine equipment, please provide a photo of your equipment's nameplate or specific operating conditions (normal operating speed, ambient temperature, whether an intercooler is required), and we will provide you with a precise selection solution.
